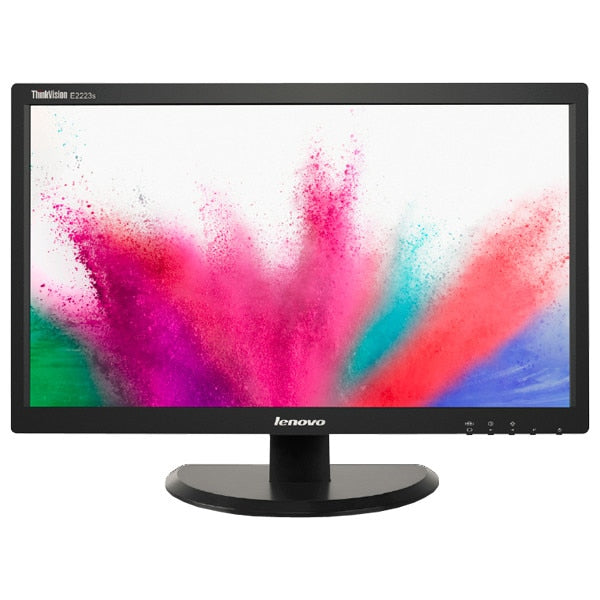

Lenovo ThinkVision E2223s 21.5-inch FHD WLED Backlit LCD Monitor (Refurbished)

Save KSh2,999.00

Sale priceKSh10,000.00 Regular priceKSh12,999.00


We have the largest variety of monitors in Kenya.

Lenovo ThinkVision E2223s 21.5-inch FHD WLED Backlit LCD Monitor (Refurbished) price in Kenya is ksh10,000.00 at LaptopClinic.co.ke Get it in 2 hours/ Same Day for Nairobi, Next Day Countrywide

Features and specifications

The Lenovo ThinkVision E2223s monitor (60AF-HAR1-WW) meets users all functional needs in both work and home environments. It adopts WLED backlit panel, with wide screen of 1920 x 1080 resolution pixels, which provides Full HD qualification to customers. Its 16:9 aspect is standing for the increasingly popular trend. With built-in VGA + DVI interfaces and tiltable stand, it offers users comfortable usage experience. Compatible with Windows Vista, Windows7, Windows 8 & 8.1 and Windows 10 makes it more flexible for usage. In addition, it is environmentally conscious, meeting the latest green standards including Energy Star 6.0 Certified, Mainland China Energy Standard Tier1 and EPEAT Silver Certification.

Features and Benefit:

 21.5-inch FHD LED backlit LCD panel

Digit control 8 languages OSD

1920 X 1080 resolution

VGA+DVI interface

Tilt stand

Window Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 compatible

Energy Star 6.0/ Mainland China Energy standard Tier 1/EU RoHS /Mainland China RoHS /Türkiye RoHS/Ukraine RoHS / EPEAT SILVER / VOC test

Feature Specification

Panel Size            21.5-inch Wide

Screen Dimensions (W x H, mm) 476. 064 x 267.768

Panel Type (TN, IPS)         TN

Backlight (WLED,CCFL)    WLED

Aspect Ratio       16:9

Resolution           1920 x 1080

Viewable Area*(diagonally measured, inch/mm) 21.5 inch/546.1 mm

Pixel Pitch (mm)                0.248 mm x 0.248 mm

Dot/Pixel Per Inch (DPI/PPI)          (25.4 mm/0.248 mm) = 102

Viewing angle (H x V @ CR 10:1) 90/50

Response Time (Typical) 5 ms

Brightness (typical)          200cd/m2

Contrast Ratio (typical)   600:1

Color Gamut (NTSC CIE 1931)      72%

Color Gamut sRGB (1931)             100%

Color Support (Typical)   16.7M

Horizontal Frequency      30 - 83 KHz

DVI         30 - 83 KHz

Vertical Frequency           50 - 75Hz

Native Resolution

1920 x 1080

Maximum Pixel Clock Speed / Bandwidth               VGA: 205MHz

DVI: 165MHz

Default Color Temperature            7200K

Preset / User Modes        26

Video Input Signals (VGA,DVI,DP,HDMI, MHL, USB)            VGA + DVI

Video Cables Supplied (VGA,DVI,DP,HDMI)             VGA + DVI

Video Cable Length          1.8m

Power Consumption (Typ./Max)  19w/22w

Power Consumption Sleep/Off Mode       < 0.5 w

Power Consumption Switch-Off Mode     < 0.5 w

Power Supply      Internal (135W)

Tilt Angle (front / back)  -5° / 22°

VESA mount        100 mm * 100 mm

Kensington lock slot        Yes

Cable Management         No

Bezel Color          Raven Black

Bezel Width (Side)            18.3 mm (0.72 inch)

Bezel Width (top / bottom)           20.8 mm (0.82 inch)/25.9 mm (1.02 inch)

ENERGY STAR Rating        6.0

EPEAT    Silver

RoHS (EU/Mainland China/Türkiye/Ukraine)          Yes

Windows Certification     Windows Vista / 7 / 8 / 8.1/ 10

Image Quality Capability               ISO 9241-307/TUV-ERGO

Mainland China Energy Efficiency Standard           Tier 1

Ambient Operating Temperature                0 to 45°

Heat Dissipation (Typ./Max)         64.79 / 75.02

On- Screen Display (OSD) Menu Control:

Key Knob Functions Summary

There are five key knobs: Power Switch, Enter Menu, Right / Brightness, Left / Auto adjustment and Exit .

OSD Controls




Image Position

Horizontal position

Vertical position

Image setup: -

Automatic Setup

Manual Setup

Image properties:


Mode 1 (Preset –7200K , sRGB, 6500K,,9300K), Mode 2 (Custom – R,G,B, Save)

(Reddish , sRGB, Neutral , Bluish )

Input Signal




Language Selection

Menu Position – Default, Custom (H / V)

Reset – Cancel, O.K

Accessibility – Button Repeat Rate (Off, Default, Slow), Menu Timeout (5 to 60 sec)


The OSD menu supports the following languages: English, French, German, Spanish, Italian, Japanese, Simplified Chinese and Russian.

Physical specifications

Dimensions and weight of the monitor and stand

Parameter           Unpacked            Packed

Height   14.94 inch (379.4 mm) (including stand) 17.32 inch(440 mm)


20.26 inch (514.5 mm)

22.72 inch (577 mm)


6.58 inch (167.2 mm) (including stand))

5.12 (130 mm)

Weight  3.4 kg (7.52 lbs) -

Operating environment

Conservation: Energy can be saved by switching monitors off overnight and whenever they are not in use for extended periods during the day.

Power requirements

Power Consumption (Typ./Max) 19w/22w

Power Consumption Sleep/Off Mode < 0.5w

Power Consumption Switch-Off Mode < 0.5w

Power Supply Internal (135W)

Power Voltage 90---264VAC, 1.5—0.8A

Voltage Dynamic Frequency 47-63Hz

Status    Typical consumption        Max consumption             Indicator

On mode             19W       22W       Green

On mode

--Out of Range   19W       22W       Green Blinking

(0.5s interval)

Sleep     < 0.5 W < 0.5 W Amber

Off mode             < 0.5 W < 0.5 W Amber

Switch off mode               < 0.5 W < 0.5 W Off

Actual power consumption depends on the chosen display mode, the images displayed, and user control settings.

Ambient temperature and relative humidity

Parameter           Temperature       Humidity              Altitude

Operating            0 to 40 deg.C      10 to 80 %          0 to 8000 ft

Non operating    -20 to 60℃          5 to 95 %             0 to 40,000 ft

Shipping               -20 to 60 deg. C 5 to 95 %             0 to 40,000 ft

Storage -20 to 60 deg. C 5 to 95 %             0 to 40,000 ft


Declared acoustical noise emissions LWAU = 4.5 bels or less. The noise emission level stated is the declared (upper limit) A-weighted sound power level, in bels, for a random sample of monitors. All measurements are made in accordance with ANSI S12.10 and reported in conformance with ISO/DIS 7779.


Compliance to the ISO standard ISO 9241-307 provides that ergonomic requirements are met when the monitor forms part of an ISO-compliant system.


Announce date: 17 Sept 2013 (Worldwide)

Planned availability date: 8 October 2013 (Worldwide)

Hardware Compability

The ThinkVision E2223s Wide Monitor is intended to operate with system units or video adapters that generate a video output signal falling within the following specification:

Parameter           Monitor

Maximum resolution       1920 x 1080 pixels

Optimum resolution        1920 x 1080 pixels

Maximum pixel rate        VGA: 205MHz DVI: 165MHz

Preset Display Modes - Factory Mode: VGA, DVI, DP, HDMI


(H x V Pixels)       Incoming video refresh rate

PAL VGA               50 Hz

640 x 350            70 Hz

640 x 480            60 Hz

640 x 480            72 Hz

640 x 480            75 Hz

720 x 400            70 Hz

800 x 600            56 Hz

800 x 600            60 Hz

800 x 600            72 Hz

800 x 600            75 Hz

832 x 624            75 Hz

1024 x 768          60 Hz

1024 x 768          70 Hz

1024 x 768          75 Hz

1152 x 864          75 Hz

1280 x 1024        60 Hz

1280 x 1024        70 Hz

1280 x 1024        75 Hz

1366 x 768          60 Hz

1440 x 900          60 Hz-R

1440 x 900          60 Hz-R

1600 x 900          60 Hz

1600 x 900          75 Hz

1680 x 1050        60 Hz

1680 x 1050        60 Hz (Prime)

1920 x 1080        60 Hz-R

Note : 640x350_70Hz and 720x400_70Hz are confused modes, both of them are recognized as 720x400_70Hz.

This is the optimum display mode for the best displayed image. Reduced image quality may result if used in other modes due to the image scaling limitations of LCD monitor technology.

The number of user mode is: 26

User Modes are automatically stored in 2 minutes after adjustment action ceases

Software requirements

The monitor features preset display modes. The actual display modes used depend on the attaching system unit, the operating system, and application software.

Microsoft Windows Vista

Microsoft Windows 7

Microsoft Windows 8

Microsoft Windows 8.1

Microsoft Windows 10

Agency approvals




IEC950 CB Report




CCC (Mainland China)

NOM (Mexico)

SASO (Saudia Arabia)


PSB (Singapore)

BSMI (Taiwan Region)

JEITA (Japan)

TUV-S (Argentina)

CSA (Canada)

SABS(South Africa)



INSM (Moldavia)



BELLIS (Belarus)








CE (Europe)

VCCI (Japan)

KCC (Korean )

C-Tick (Australia/New Zealand)

IC (Canada)

BSMI (Taiwan Region)

CCC (Mainland China)

SABS (South Africa)


BELLIS (Belarus)

STZ (Uzbekistan)

KONCAR (Croatia)


Energy Star 6.0

Mainland China Energy standard Tier1


ISO 9241-307/TUV-ERGO

e-standby (Korea)


CEL(Grade 1)


EU RoHS /Mainland China RoHS/ Türkiye RoHS/Ukraine RoHS

EPEAT Silver


ECO declaration


Microsoft Windows Vista/7/8/8.1/10/11
