Description

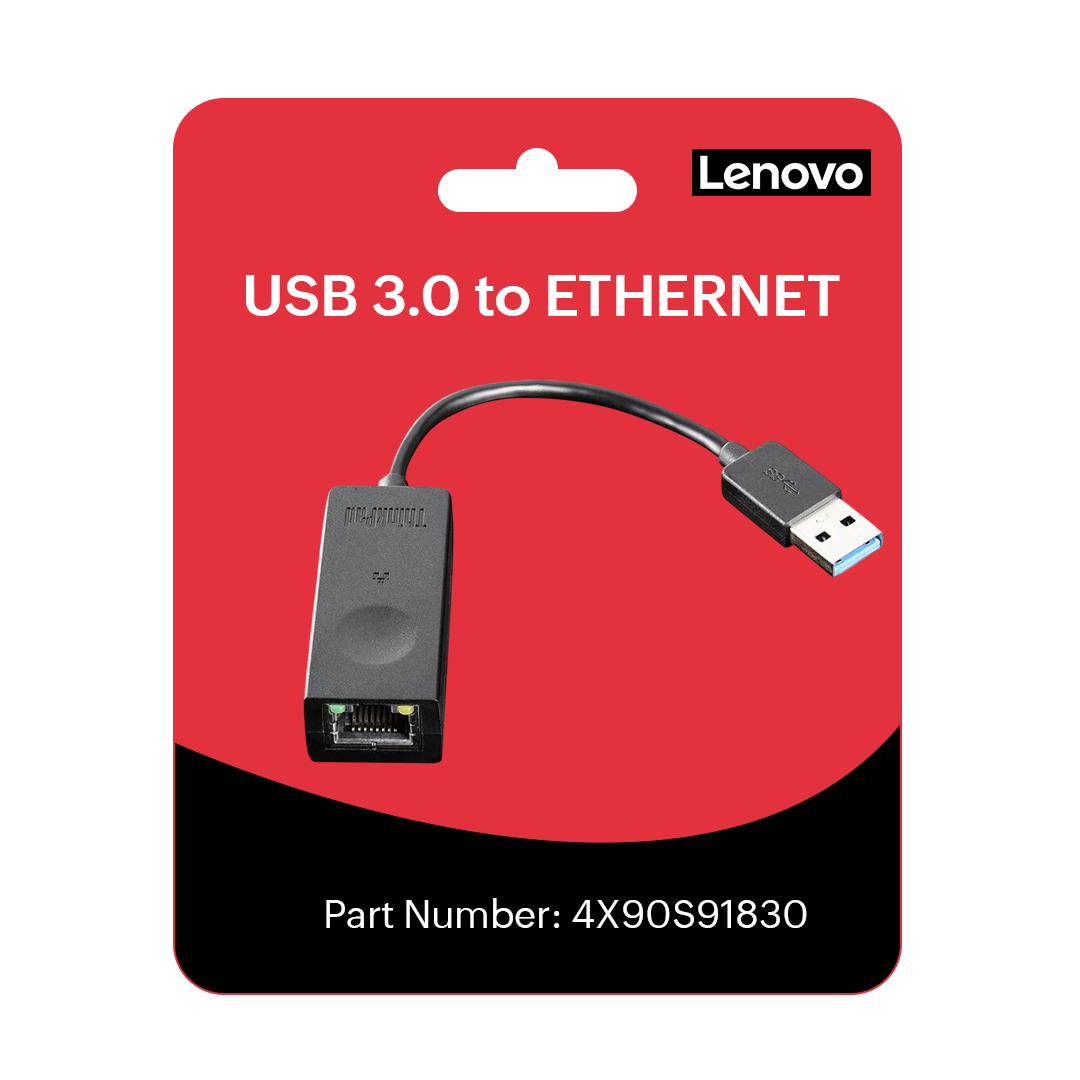

The ThinkPad USB3.0 to Ethernet Adapter is quick and easy way to connect your notebook and desktop to Ethernet connections. It’s ideal for imaging of systems or transferring large files quickly.
Top Features:
Sleek design;
Full-size RJ45 connector;
LEDs on RJ45 connector to indicate activity and link status;
Support PXE boot, Wake-On-LAN, MAC pass through if host notebook supports
Physical specifications
Packed Physical Specification(Dimension)(in): 7.7x4.0x0.7
Packed Physical Specification(Dimension)(mm): 195x102x17
Packed Weight: 41g
Unpacked Physical Specification(Dimension)(in): 6.8x0.9x0.6
Unpacked Physical Specification(Dimension)(mm): 172x22x16
Unpacked Weight: 18g
Maximum Relative Humidity(%): 95
Maximum Temperature(℃): 40
Maximum Temperature(℉): 104
Minimum Relative Humidity(%): 20
Minimum Temperature(℃): -5
Minimum Temperature(℉): 23
Other Electrical Specifications
Two LEDs on RJ45 port for power and data transfer indication. Green for power and Yellow for activity
Full Duplex flow control (IEEE 802.3x)
Support MAC pass through on selected ThinkPad notebook systems
Support PXE boot on selected ThinkPad notebook
