Technical Specifications

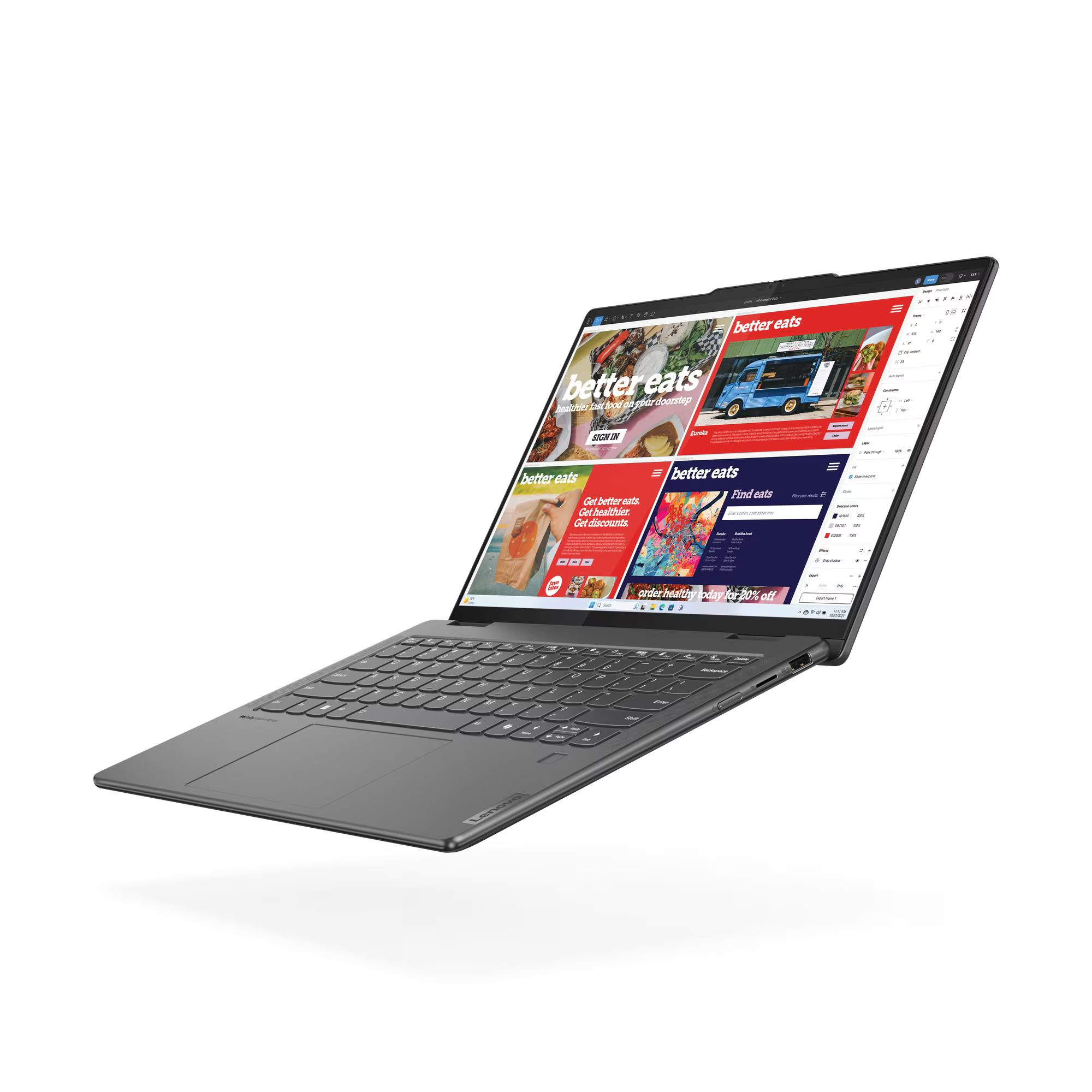

• Model: 83DJ003NUE
• Intel Core Ultra 7 155U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB
• 16GB Soldered LPDDR5x-7467
• 1TB SSD M.2 2242 PCIe 4.0x4 NVMe
• Integrated Intel Graphics
• Windows 11 Home Single Language, English
• 2Y Courier/Carry-in upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)

PERFORMANCE

Processor
Intel® Core Ultra 7 155U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB

AI PC Category
AI PC

NPU
Integrated Intel® AI Boost, up to 11 TOPS

Graphics
Integrated Intel® Graphics

Chipset
Intel® SoC Platform

Memory
16GB Soldered LPDDR5x-7467

Memory Slots
Memory soldered to systemboard, no slots, dual-channel

Max Memory
16GB soldered memory, not upgradable

Storage
1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Slot
One M.2 2242 PCIe® 4.0 x4 slot

Max Storage Support
One drive, up to 1TB M.2 2242 SSD

Card Reader
microSD Card Reader

Audio Chip
High Definition (HD) Audio, Realtek® ALC3306 codec

Speakers
Stereo speakers, 2W x2, optimized with Dolby Atmos®, Smart Amplifier (AMP)

Microphone
2x, Array

Camera
FHD 1080p + IR with Privacy Shutter

Battery
71Wh

Power Adapter
65W USB-C® (3-pin)

DESIGN

Display
14" WUXGA (1920x1200) IPS 300nits Glossy / Anti-fingerprint, 45% NTSC, 60Hz, Dolby Vision®, TÜV Low Blue Light, Glass, Touch

Touchscreen
OGM, 10-point Multi-touch

Screen-to-Body Ratio
91% AAR (active area ratio)

Color Calibration
None

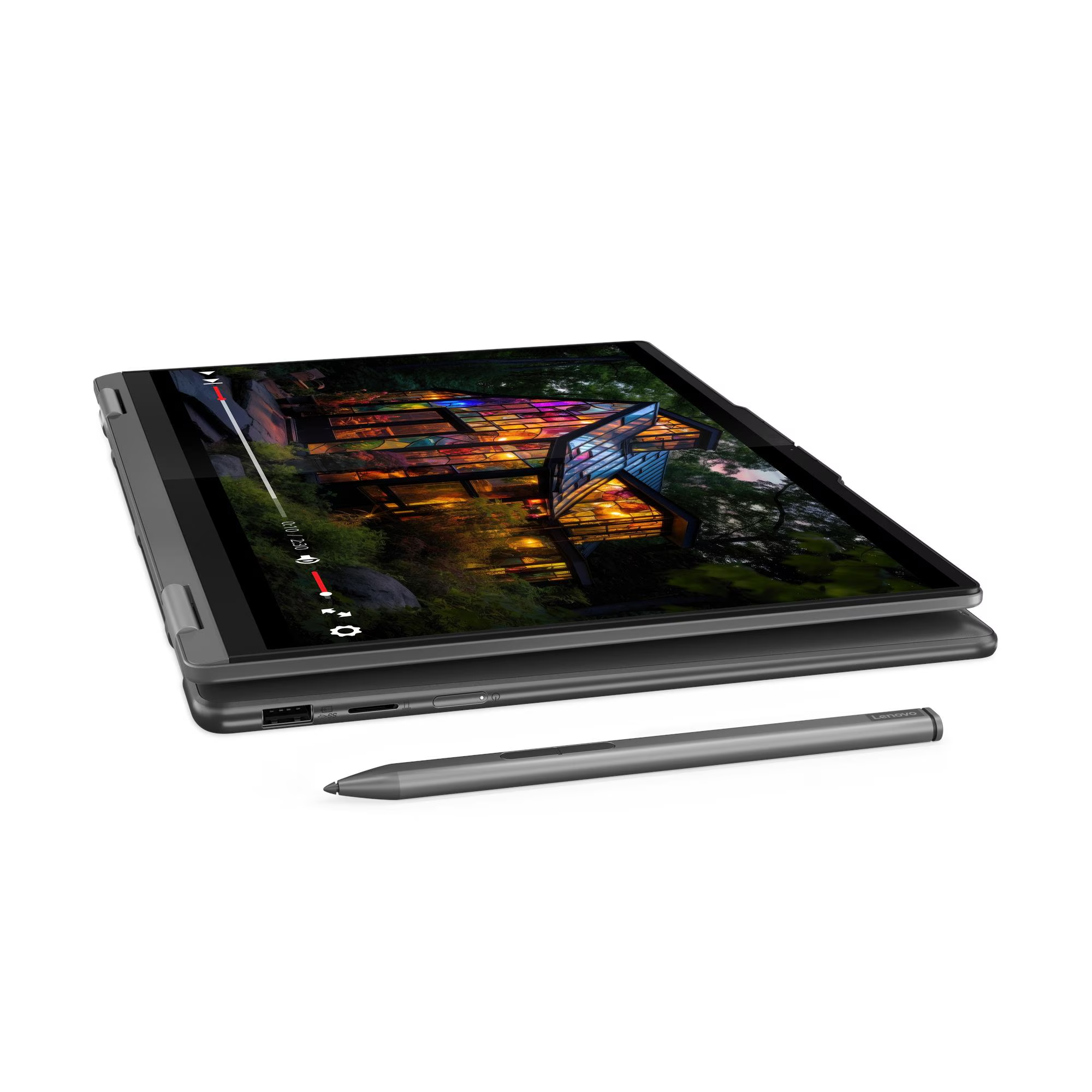

Pen
Lenovo® Digital Pen

Keyboard
Backlit, English (UK)

Touchpad
Buttonless glass-like Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH)
317.72 x 222.13 x 16.64 mm (12.51 x 8.75 x 0.66 inches)

Weight
Starting at 1.61 kg (3.55 lbs)

Case Color
Storm Grey

Case Material
Aluminium (Top), Aluminium (Bottom)

Surface Treatment
Aluminium Stamping (Anodized with Sandblasting)

SOFTWARE

Operating System
Windows® 11 Home Single Language, English

Bundled Software
Office Trial

CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 6E, 802.11ax 2x2 + BT5.3

WWAN
Non-WWAN

Ethernet
No Onboard Ethernet

Standard Ports
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.1 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x microSD card reader

Docking
Various docking solutions are supported via Thunderbolt™.
For more compatible docking solutions, please visit Docking for Yoga® 7 2-in-1 14IML9

SECURITY & PRIVACY

Security Chip
Firmware TPM 2.0

Fingerprint Reader
Touch Style, on Palm Rest

Other Security
Camera privacy shutter
IR camera for Windows® Hello (facial recognition)

SERVICE

Base Warranty
1-year, Courier or Carry-in
Included Upgrade
2Y Courier/Carry-in upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)

ACCESSORIES

Bundled Accessories
None

CERTIFICATIONS
Green Certifications
ENERGY STAR® 9.0
EPEAT™ Gold Registered
ErP Lot 6/26
RoHS compliant
Mil-Spec Test
MIL-STD-810H military test passed (21 test items)

Other Certifications
Models with WUXGA IPS panel:
TÜV Rheinland® Low Blue Light (Software Solution)

MODEL INFORMATION

Model
83DJ003NUE

Machine Type
83DJ

Region
MEA

Country/Region
Emat-UK

EAN / UPC / JAN
197530659614

Announce Date
2024-02-07

End of Support
2030-03-07
